SMNA -
SNOW MELTING MATS
(NON ASPHALT)
APPLICATION
Outdoor applications for melting snow & de-icing
SURFACE
TYPE
Non-asphalt areas with Concrete or soil
INSTALLATION
LOCATION
Roofs, gutters, drains, driveways, parkings, pavements etc.
INSTALLATION
TECHNIQUE
Under concrete
Snow melting mats for non-asphalt areas (SMNA) are specifically engineered for outdoor applications and embedding in concrete to ensure efficient snow melting and de-icing in areas such as driveways, parkings, pavements, walkways, sports fields etc.

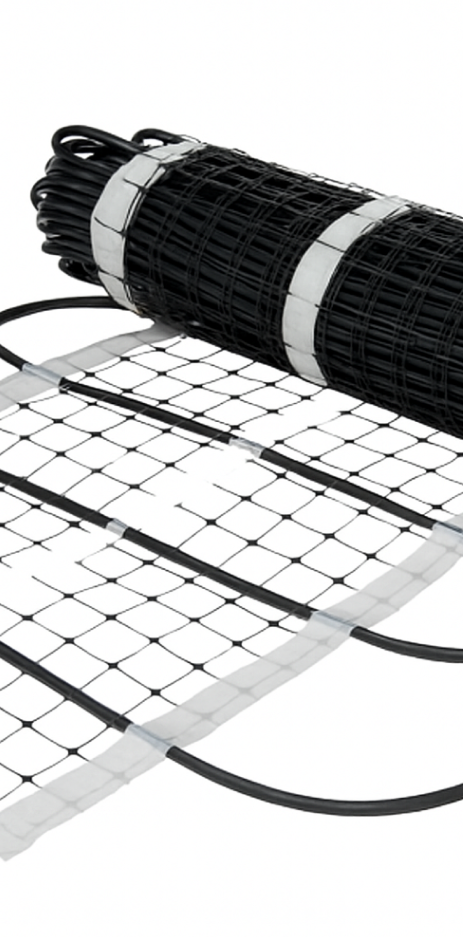

The heating mats comprise of a heating cable securely attached to a flexible plastic mesh using adhesive tape or can be used without a plastic mesh with tightly wound adhesive tapes. The cable is arranged in a meandering pattern to ensure uniform spacing and even heat distribution across the length.
The single/twin series-resistance type heating elements are insulated with high temperature cross-linked polymer or fluoropolymers having high dielectric strength and exceptional temperature resistance, ensuring complete safety during operation. Shielding is provided for proper grounding and ensuring minimal EMF emission. To further enhance strength and adaptability for outdoor applications, the cable is enclosed in an outer jacket made of Polyolefin (Low Smoke Zero Halogen). The jacket provides high resistance to fire & low-smoke emission in any unfortunate fire incidence.
A hot to cold junction is properly combined to ensure reliability and longevity.
SPECIFICATIONS
- Heater ElementSingle/ Twin
- Heating Power Output300-350 W/M²
- Rated voltage230 V A.C, 50 Hz
- Cold lead length (Nom.)5.0m
- Mesh (optional)Plastic
- Mesh width (Nom.)400mm (0.4m) – 1000mm (1.0m)
- Compliance toIEC 60800 ( Class M2 )
mat Construction
- Heating conductor
- Cross-linked Polymer / Fluoropolymer insulation
- Alum-mylar tape with copper drain wire
- Polyolefin
- Flexible Plastic mesh or Adhesive tapes
- Cold lead
Safe Paths in Every Season
The SMNA Mat is engineered for efficient snow melting and de-icing in non-asphalt outdoor areas such as driveways, parking lots, pavements, walkways, and sports fields. Designed for direct embedding in concrete, it ensures uniform heating through a meandering cable layout, securely fixed on a flexible plastic mesh or held by adhesive tapes.
The mat features single or twin series-resistance heating elements, insulated with high-temperature cross-linked polymers or fluoropolymers for superior safety, dielectric strength, and heat resistance. It also includes shielding for proper grounding and reduced EMF emissions.
A durable polyolefin (LSZH) outer jacket offers excellent fire resistance and low smoke output, making it highly reliable for rugged outdoor conditions. Built for safety, efficiency, and longevity, the SMNA Mat is your trusted snow control solution.
Energy Efficient
Easy Installation
CE CERTIFIED
Sustainability
