SMA –
SNOW MELTING
ASPHALT MATS
APPLICATION
Outdoor applications for melting snow & de-icing
SURFACE
TYPE
Asphalt surfaces with concrete or soil
INSTALLATION
LOCATION
Roads, driveways, parkings, pavements etc.
INSTALLATION
TECHNIQUE
Under concrete, Asphalts
Snow melting mats for asphalt areas (SMA) are designed for outdoor applications and embedding in concrete to ensure efficient snow melting and de-icing in asphalt areas such as roads, driveways, parkings, pavements etc.

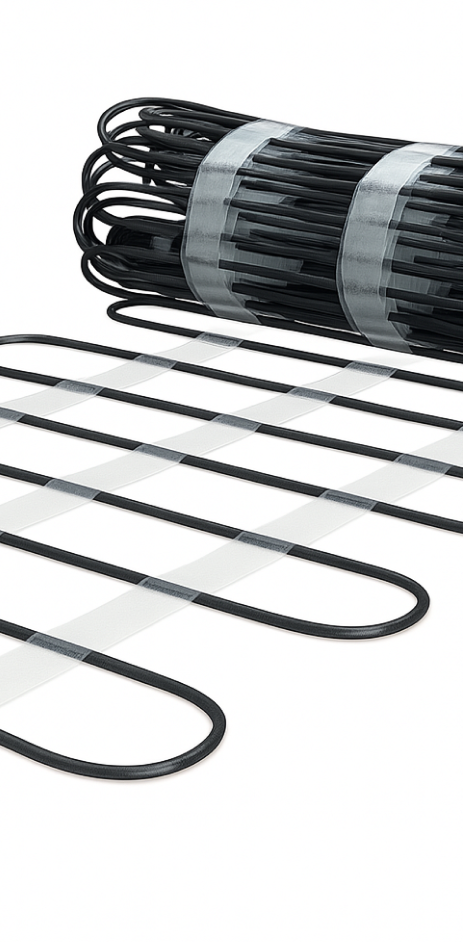

The heating mats comprise of a heating cable securely attached to a flexible plastic mesh using adhesive tape or can be used without a plastic mesh with tightly wound adhesive tapes. The cable is arranged in a meandering pattern to ensure uniform spacing and even heat distribution across the length.
The single/twin series-resistance type heating elements are insulated with high temperature cross-linked polymer or fluoropolymers having high dielectric strength and exceptional temperature resistance, ensuring complete safety during operation. Shielding is provided for proper grounding and ensuring minimal EMF emission. To further enhance strength and adaptability for outdoor applications, the cable is enclosed in an outer jacket extruded with special Polyolefin which can withstand the high temperature. The jacket provides high resistance to fire, low-smoke emission in any unfortunate fire incidence and high resistance to temperature.
A hot to cold junction is properly combined to ensure reliability and longevity.
SPECIFICATIONS
- Heater ElementSingle/ Twin
- Heating Power Output300-350 W/M²
- Rated voltage230 V A.C, 50 Hz
- Cold lead length (Nom.)5.0m
- Mesh (optional)Plastic
- Mesh width (Nom.)400mm (0.4m) – 1000mm (1.0m)
- Compliance toIEC 60800 ( Class M2 )
mat Construction
- Heating conductor
- Cross-linked Polymer / Fluoropolymer insulation
- Alum-mylar tape with copper drain wire
- Special Polyolefin
- Flexible Plastic mesh or Adhesive tapes
- Cold lead
Power Beneath the Pavement
The SMA Mat is specifically engineered for asphalt applications, offering efficient and uniform snow melting in areas like roads, driveways, parking lots, and pavements. Designed for embedding in concrete, the mat features a heating cable laid in a meandering pattern, securely attached to a flexible plastic mesh or held in place with adhesive tapes—ensuring even heat distribution across the surface.
It incorporates single or twin series-resistance heating elements insulated with high-temperature cross-linked polymers or fluoropolymers, providing excellent dielectric strength and safety. Advanced shielding ensures proper grounding and minimal EMF emissions.
To withstand the rigors of asphalt installation, the cable is enclosed in a specially formulated polyolefin outer jacket that resists high temperatures, fire, and smoke emission. The hot-to-cold junction is engineered for durability and long-term reliability, making SMA Mat a robust, weather-ready solution for demanding outdoor environments.
Energy Efficient
Easy Installation
CE CERTIFIED
Sustainability
