SFM –
STICKY UFH MATS

APPLICATION

Electric Floor Heating for comfort heat

SURFACE
TYPE

Tiles or Laminate floor

INSTALLATION
LOCATION

Indoor dry & wet applications like bathrooms, kitchen, living areas

INSTALLATION
TECHNIQUE

Thin layer of self levelling or glue

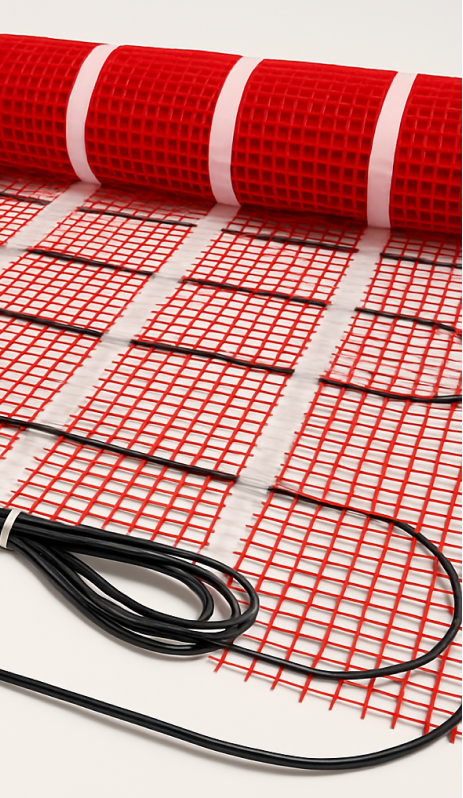

Sticky Floor Heating Mat (SFM) is designed for seamless floor heating and enhanced thermal comfort in indoor environments. These mats feature a heating cable pre-fixed onto a self-adhesive fiberglass mesh, enabling quick and secure installation with consistent heat coverage.

The series-resistance heating cable is insulated with high-grade fluoropolymers, offering superior dielectric strength and excellent thermal endurance, ensuring operational safety. The system is grounded with shielding to reduce EMF emissions effectively. Outer jacketing is available in PVC or Fluoropolymer as per client specifications.

The hot-to-cold connection is engineered for strength and durability, delivering long-term performance and safety.

SPECIFICATIONS

  • Heater ElementSingle/ Twin
  • Heating Power Output100, 150 and 200 W/m²
  • Fiberglass MeshSticky
  • Mesh width (Nom.)500mm (0.5 m)
  • Rated Voltage230V AC, 50Hz
  • Cold lead length (Nom.)3.0m
  • Compliance toEN 60335-1, EN 60335-2-96, EN 62233

mat Construction​

  • Heating conductor
  • Fluoropolymer insulation
  • Alum-mylar tape with copper drain wire
  • PVC / Fluoropolymer outer sheath
  • Fiberglass Mesh
  • Adhesive Tapes
  • Cold lead
Download TECHNICAL SPECIFICATIONS

Grip + Precision, Built In

Sticky Underfloor Heating Mats (SFM) are advanced electric floor heating systems designed for enhanced indoor comfort. These mats feature a series-resistance heating cable pre-attached to a fiberglass mesh with a pressure-sensitive adhesive backing, allowing quick and secure installation over subfloors.

The heating cable is evenly spaced to ensure uniform heat distribution across the entire surface. It is insulated with high-grade fluoropolymers, offering excellent dielectric strength and superior thermal resistance for safe and reliable performance. The system also includes shielding for effective grounding and reduced electromagnetic field (EMF) emissions.

Depending on user requirements, the outer jacket is available in either PVC or fluoropolymer, providing flexibility, durability, and long-lasting protection in various environments. Ideal for residential and light commercial applications, SFM mats deliver efficient and comfortable radiant floor heating.

Energy Efficient
Easy Installation
CE CERTIFIED
Sustainability
Quality Guarantee
