SCA CABLE – OUTDOOR
ASPHALT APPLICATION
APPLICATION
Outdoor applications for melting snow & de-icing
SURFACE
TYPE
asphalt areas with concrete or soil
INSTALLATION
LOCATION
Roads, driveways, parkings, pavements
INSTALLATION
TECHNIQUE
Under concrete, through specially designed mounting

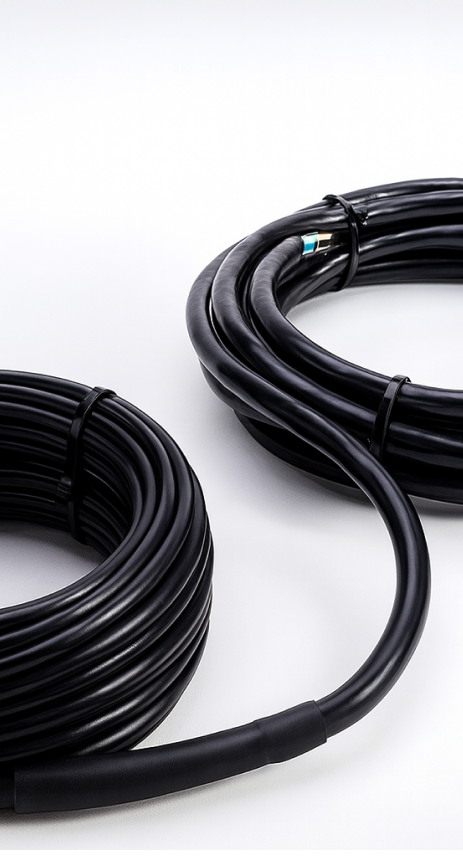

Snow Melting Cables are engineered for direct embedding in concrete applications to ensure snow melting in areas such as parking bays, driveways, pavements, outdoor steps, roofs, gutters. The cables can be used in asphalt areas (SCA). The single/twin series-resistance type heating elements are insulated with high temperature cross-linked polymer or fluoropolymers having high dielectric strength and exceptional temperature resistance, ensuring complete safety during operation.
Shielding is provided for proper grounding and ensuring minimal EMF emission. To further enhance strength and adaptability for outdoor applications, the cable is enclosed in an outer jacket made of special Polyolefin which is best suitable for asphalt areas. The jacket provides high resistance to fire & low-smoke emission in any unfortunate fire incidence.
A hot to cold junction is properly combined to ensure reliability and longevity.
SPECIFICATIONS
- Heater ElementSingle/ Twin
- Heating Power Output30-40 W/M
- Rated voltage230 V A.C, 50Hz
- Cold lead length (Nom.)5.0m
- Bending radius6 x cable diameter
- IP classIPX7
- Compliance toIEC 60800
mat Construction
- Heating conductor
- Cross-linked Polymer / Fluoropolymer insulation
- Alum-mylar tape with copper drain wire
- Special Polyolefin
- Cold lead
Heavy-Duty Heat Beneath Every Layer
The SCA Cable is built for snow melting in asphalt-covered areas like driveways, parking bays, ramps, and walkways. Designed for direct embedding in asphalt, it features single or twin series-resistance heating elements insulated with high-temperature cross-linked polymers or fluoropolymers for enhanced safety and thermal performance
Its specialized polyolefin outer jacket offers superior durability, high fire resistance, and low smoke emission—ensuring safe and long-lasting use even under tough outdoor conditions. Shielding ensures proper grounding and minimal EMF emissions, while the hot-to-cold junction design guarantees reliability and system longevity.
Energy Efficient
Easy Installation
CE CERTIFIED
Sustainability
