LFM –
LAMINATED UFH MATS

APPLICATION

Electric Floor Heating for comfort heat

SURFACE
TYPE

Wooden floors, laminate

INSTALLATION
LOCATION

Indoor dry applications like bedrooms, living areas etc.

INSTALLATION
TECHNIQUE

Directly under wooden, laminate floors

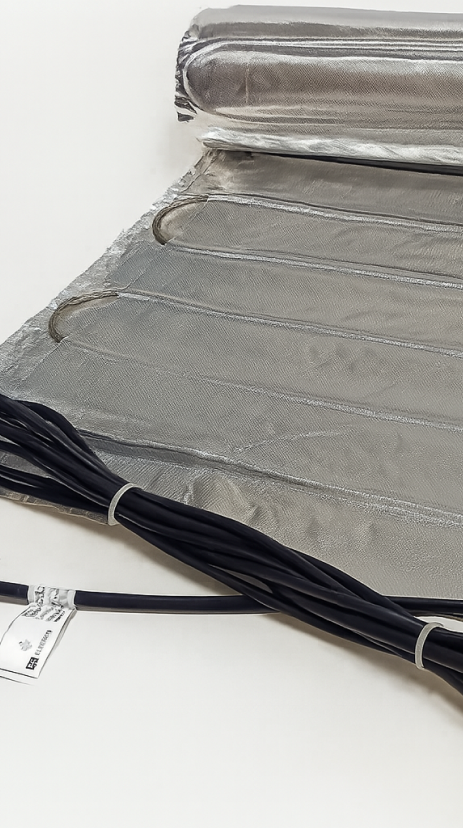

Laminate floor heating mat (LFM) are ultra-thin electric radiant floor heating system designed for indoor applications under wooden, laminate floors. LFM comprises of a heating cable sandwiched between two layers of reinforced aluminum foil. Uniformly spaced heating elements prevents occurances of heat hot spots during its length. Proper shielding is provided through the aluminium foils ensuring proper grounding and minimizing EMF emission.

The twin series-resistance type heating element is insulated with fluoropolymers having high dielectric strength and exceptional temperature resistance, ensuring complete safety during operation. A flat, flexible two-core power cable is connected to the heating elements from one corner for convenient connections.

A robust hot to cold junction design ensures safety and reliability.

SPECIFICATIONS

  • Heater ElementTwin
  • Heating Power Output80-200 W/m²
  • FoilReinforced aluminum foil
  • Foil width (Nom.)500mm (0.5 m)
  • Rated Voltage230V AC, 50Hz
  • Cold lead length (Nom.)3.0m
  • Compliance toEN 60335-1, EN 60335-2-96, EN 62233

mat Construction​

  • Heating conductor
  • Fluoropolymer insulation
  • Braiding (Optional)
  • Reinforced aluminum foil
  • Cold lead
Download TECHNICAL SPECIFICATIONS

Durability Meets Design

The LFM is an ultra-thin electric radiant heating system, specifically crafted for indoor use under wooden and laminate floors. It features a twin-core heating cable securely sandwiched between two layers of reinforced aluminum foil, delivering consistent warmth while preventing hot spots across the surface.

The series-resistance heating elements are insulated with high-performance fluoropolymers, offering excellent dielectric strength and temperature resistance. The aluminum foil layers provide effective EMF shielding and grounding. A flat, flexible two-core power cable connects from one corner, making installation quick and seamless.

With its slim profile and robust hot-to-cold junction design, the LFM mat ensures safe, efficient, and invisible heating—perfect for modern living and working spaces.
